Hytera PNC380S
PNC380S Compact PoC Radio
The Hytera PNC380S is a compact PoC handheld that uses 4G LTE and Wi-Fi for wide-area group calling among drivers, technicians, and dispatch. It delivers clear audio, GPS for tracking, an 8MP camera for photo and video capture, and a rugged IP67 build for work in rain, dust, and harsh conditions.
Overview Description of the Hytera PNC380S:
The Hytera PNC380S is made for teams that need fast group talk in vehicles and on job sites, without building a traditional radio network. It runs on Wi-Fi and nationwide 4G/LTE, giving broad coverage and strong capacity.
A dedicated Push-to-Talk key enables quick group calls, while individual calls operate in full duplex. Digital noise suppression and loudspeakers help speech cut through busy environments. You also get an 8-megapixel rear camera for sharing photos, plus GPS for real-time tracking with dispatch tools. The unit includes a bright TFT LCD screen, a full keypad, Bluetooth, and a handy LED flashlight.
For heavy-duty use, the Hytera PNC380S is IP67-rated for dust- and water-resistance and meets MIL-STD-810G shock and vibration requirements. A 4,000mAh battery is rated for up to 24 hours of operation on a 5/5/90 duty cycle. A dash-mount car kit option is available for safer in-vehicle use.
Tech Specs of the Hytera PNC380S:
-
Dimensions (H × W × D): 148 × 60 × 28 mm
-
Weight (with battery): 208 g
-
Memory: 1GB RAM, 8GB ROM; Micro SD/TF up to 32GB
-
SIM: Nano SIM (12.3 mm × 8.8 mm)
-
Display: 2.0″ TFT, 320 × 240, non-touch
-
Ports/interfaces: Micro USB 2.0; 3.5mm audio jack; dock charger interface; car kit connection interface
-
Images: 8MP
-
Video: 720p at 30 fps
-
Operating voltage: 3.85V (rated)
-
Battery: 4,000mAh (Li-ion)
-
Battery life: ≥24 hours (5/5/90 duty cycle)
-
LTE (FDD): B2/B4/B5/B7/B12/B13/B25/B26
-
WCDMA: B1/B2/B4/B5/B8
-
GSM: 850/1900 MHz
-
WLAN: 2.4GHz and 5GHz, 802.11 b/g/n
-
Bluetooth: 4.2
-
Positioning: GPS / A-GPS
-
Audio power output: 1W rated (max 2W)
-
Mic: Digital noise suppression
-
Dust/water: IP67
-
Drop resistance: 1.2 m
-
Operating temperature: -20°C to +60°C
-
Storage temperature: -30°C to +70°C
-
ESD: ±8 kV (contact), ±12 kV (air)
-
Shock & vibration: MIL-STD-810G
Standard Accessories:
BP4006, PS2023, PC80, RO03, BC50
Optional Accessories:
BC50, BP4006, CK10, EAS07, EHS24, Halo Care, MCL35-S, PC80, POA121, PS2023, RO03, SM09S1, SM18A3
Key Features of the Hytera PNC380S:
CERTIFIED NATIONWIDE CONNECTIVITY
PTCRB certified and approved for reliable nationwide use on major networks.
INSTANT GROUP AND INDIVIDUAL CALLING
The push-to-talk key starts a half-duplex group call, while one-to-one calls run full duplex.
INDUSTRY-LEADING AUDIO QUALITY
Digital noise suppression plus high-volume speakers help keep the voice clear.

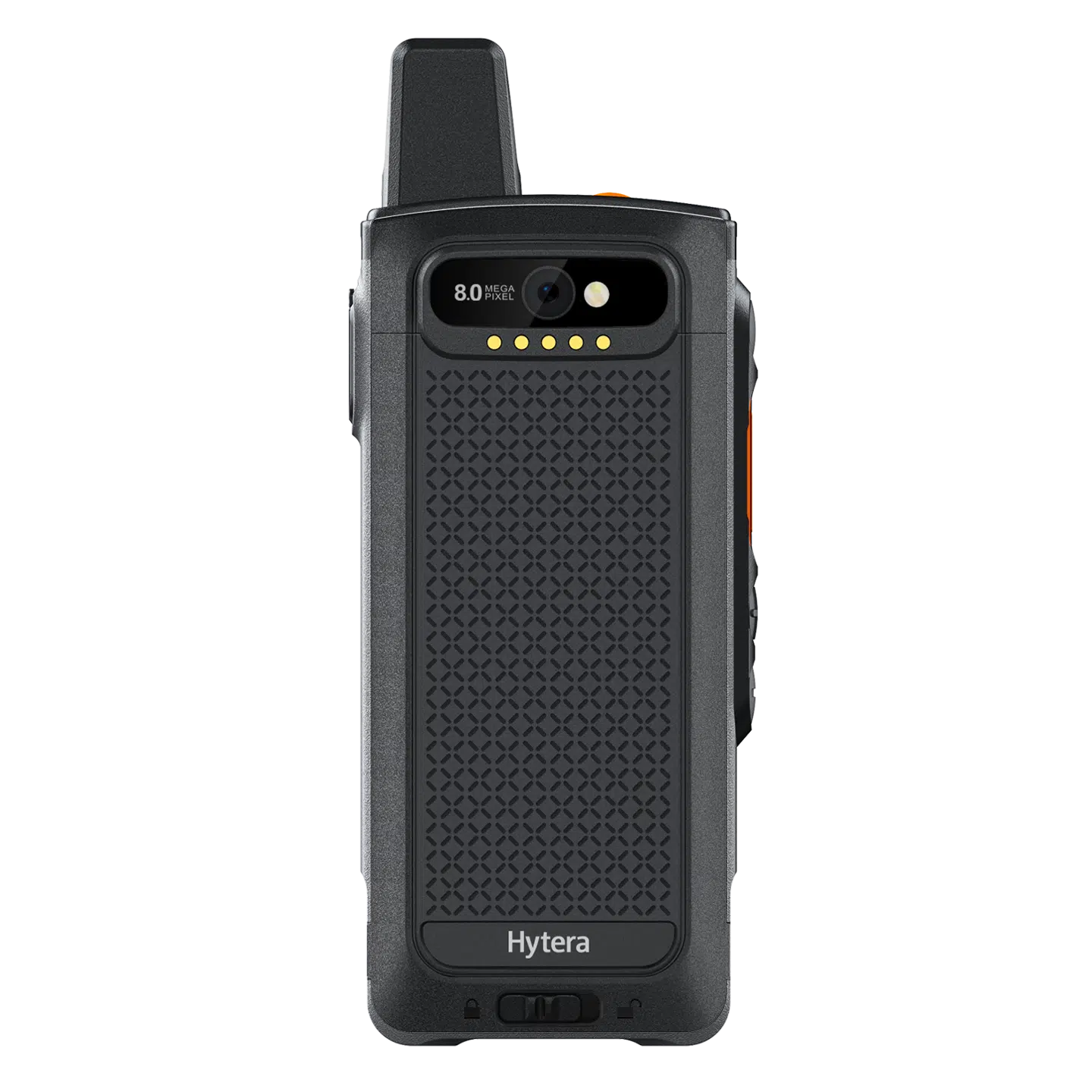

HIGH-DEFINITION 8MP CAMERA
The rear camera captures photos and videos to improve awareness and enable faster decisions.
BUILT-IN WI-FI WITH LTE SWITCHING
Wi-Fi provides indoor coverage, then hands off to LTE when you move out of range.
GPS POSITIONING
Location tools enable tracking and positioning for dispatch workflows.

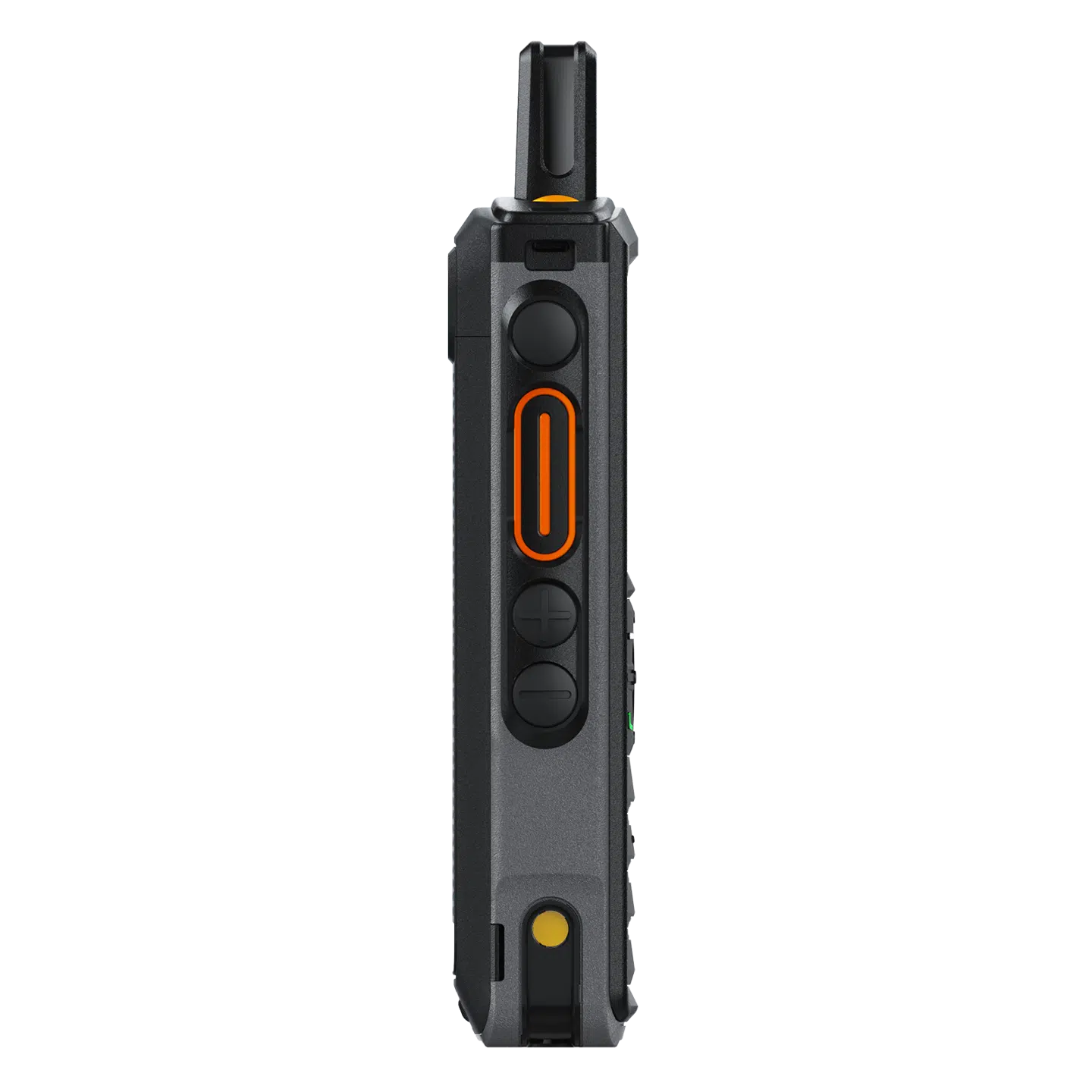

ERGONOMIC ONE-HAND USE
Compact shape with easy-access keys and a reversible belt clip for screen-in or screen-out carry.
BUILT-IN BLUETOOTH
Pairs with wireless earpieces and other compatible accessories.

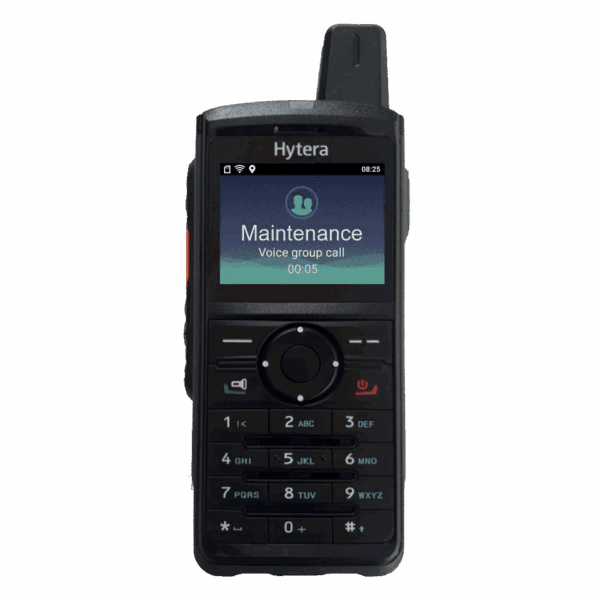

BRIGHT TFT LCD DISPLAY
The high-visibility screen remains readable in daylight and supports simple menu navigation.
RUGGED AND RELIABLE
IP67 rating and MIL-STD-810G shock and vibration compliance, plus 1.2m drop resistance.
LONG-LIFE BATTERY
4,000mAh Li-ion polymer pack rated for up to 24 hours of operation (5/5/90).
CAR KIT OPTION
Dash-mount kit supports safer calling and adds ports for external audio and PTT controls.
TEXT AND AUDIO MESSAGING
Send and view text messages, plus recorded voice messages.
SAFETY TOOLS
One-touch emergency button, plus remote disable/restore if a unit is lost or stolen.
