Hytera PNC560

Details

Key Features

Accessories

Technical Specifications

Details

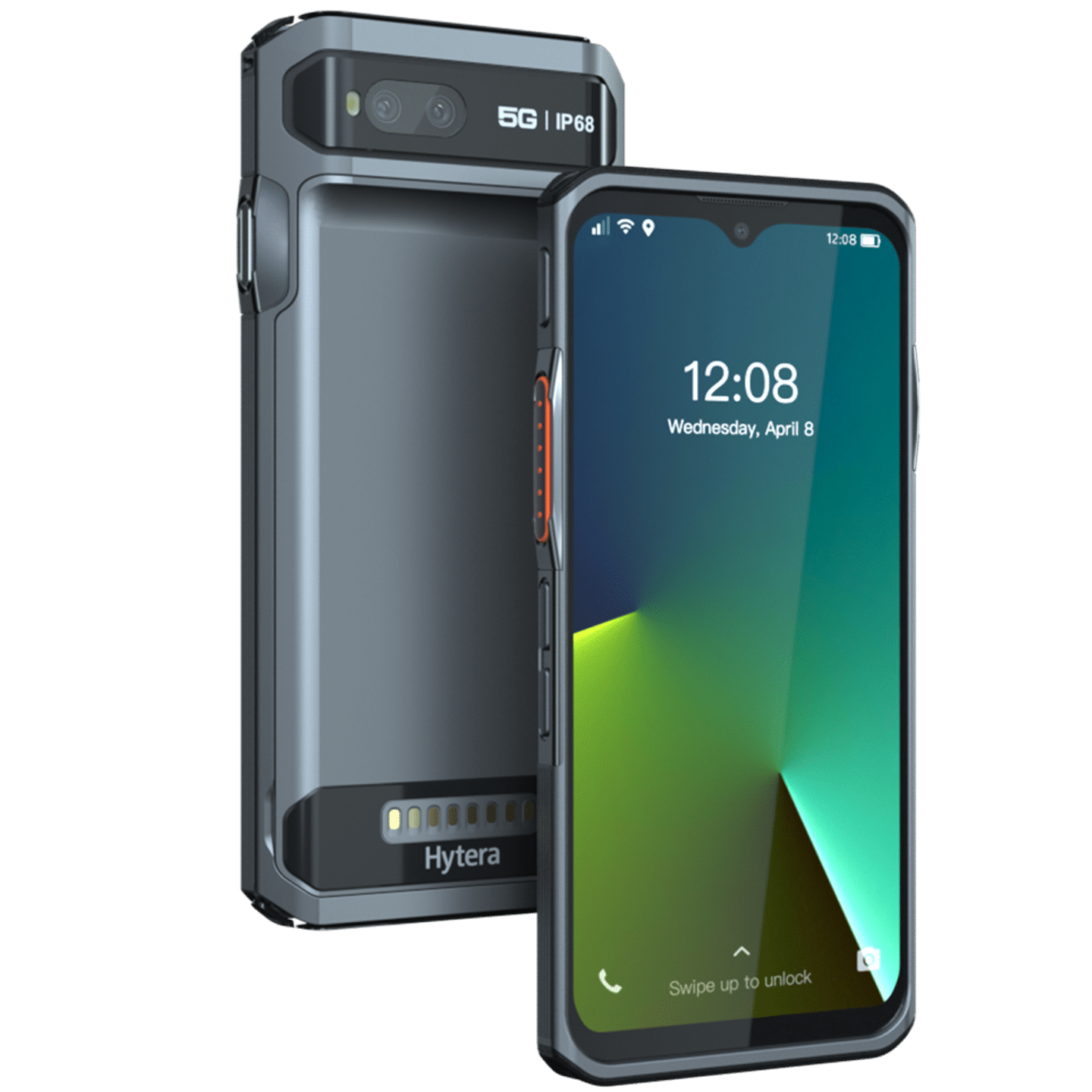

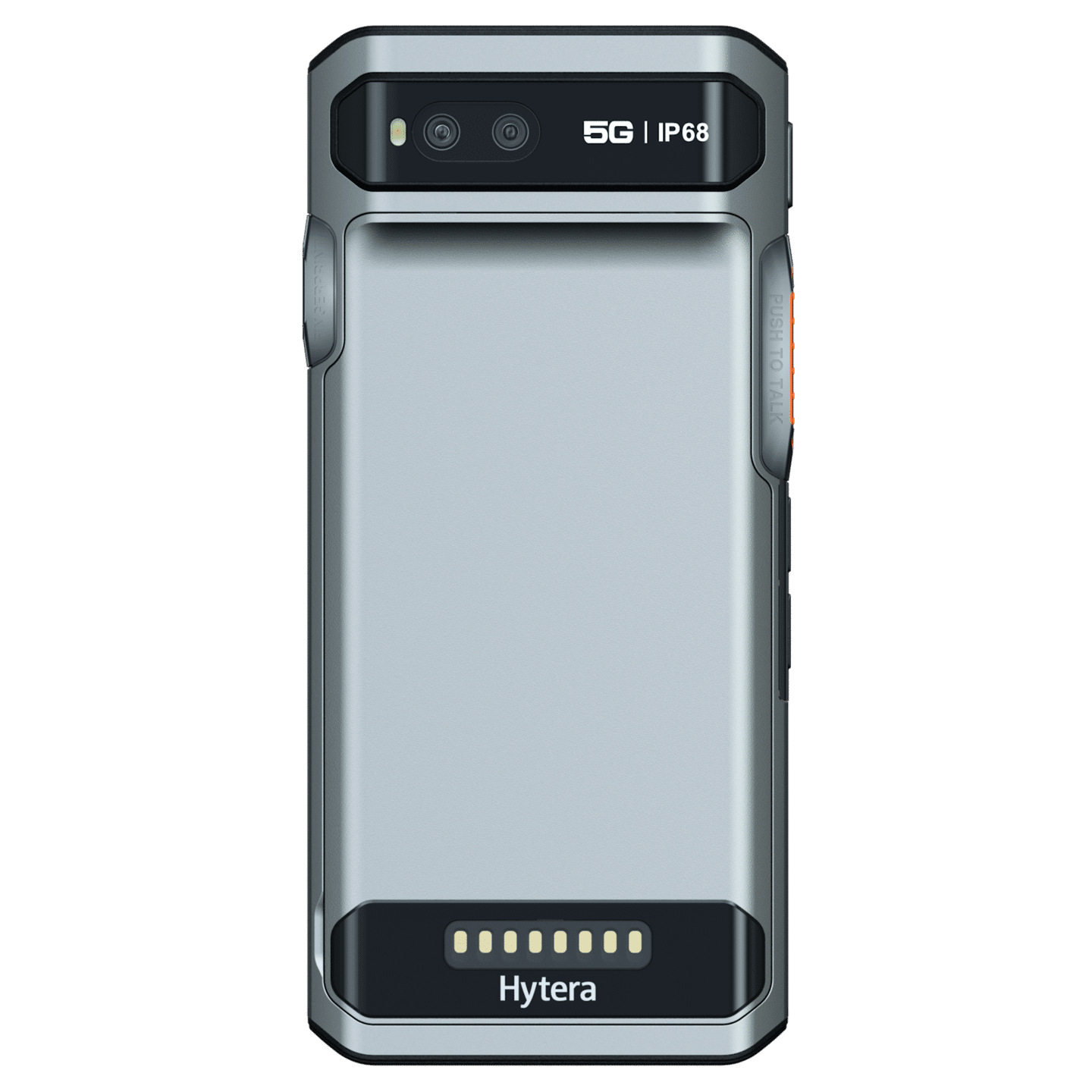

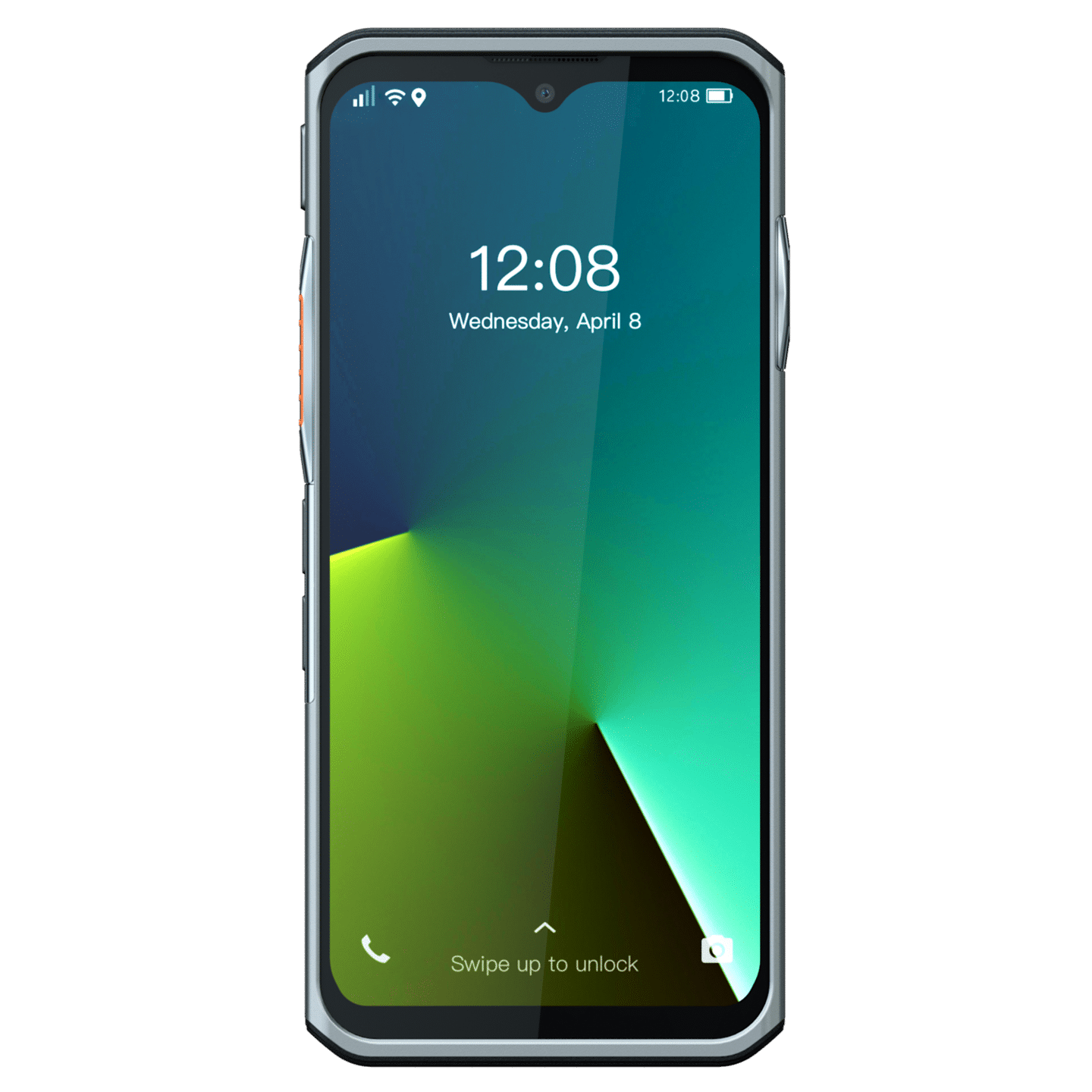

Hytera PNC560

Push-to-Talk over Cellular Handheld Smart Device

The Hytera PNC560 is a Push-to-Talk over Cellular (PoC) radio and handheld smart device designed for nationwide business operations and remote workforce communications. The PNC560 combines the advantages of a compact mobile computer and a data collection terminal with the ruggedness, enhanced audio quality, and instant Push-to-Talk group communications of a professional PoC device. It features a built-in infrared scanner for warehouse, inventory management, and medical applications.

Powerful Handheld Smart Device and Push-to-Talk Radio
Built-In Infrared Barcode Scanner
Industry-leading Voice Quality with Digital Noise Suppression
Supports Instant Group Voice and Video Calling and Texting
Rugged and Purpose Built for Professional Communications
Seamless Switching between Cellular and Wi-Fi Networks
Runs Android Business Apps

The PNC560 is supported on the Hytera HALO Nationwide PoC subscription-based service, on Hytera HALO OnSite customer-owned PoC system, and Hytera HALO Connect unified PoC and LMR platform. The PNC560 is supported on Hytera HALO Dispatch, powerful web-based group communication, and location tracking application.

Owner’s Manual

Key Features

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_3.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_3-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_4.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_4-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_5.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_5-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_1.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_1-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_2.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_2-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_3.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_3-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_4.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_4-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_5.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_5-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_1.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_1-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_2.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_2-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_3.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_3-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_4.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_4-150×150.png” />

<img decoding="async" src="data:;base64,” alt=”” width=”150″ height=”150″ data-cap=”” data-image=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_5.png” data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/PNC560_PoC_Mobile_Computer_5-150×150.png” />

Push-to-Talk over Cellular Handheld Smart Device

The Hytera PNC560 is a Push-to-Talk over Cellular (PoC) radio and handheld smart device designed for nationwide business operations and remote workforce communications. The PNC560 combines the advantages of a compact mobile computer and a data collection terminal with the ruggedness, enhanced audio quality, and instant Push-to-Talk group communications of a professional PoC device. It features a built-in infrared scanner for warehouse, inventory management, and medical applications.

Powerful Handheld Smart Device and Push-to-Talk Radio
Built-In Infrared Barcode Scanner
Industry-leading Voice Quality with Digital Noise Suppression
Supports Instant Group Voice and Video Calling and Texting
Rugged and Purpose Built for Professional Communications
Seamless Switching between Cellular and Wi-Fi Networks
Runs Android Business Apps

The PNC560 is supported on the Hytera HALO Nationwide PoC subscription-based service, on Hytera HALO OnSite customer-owned PoC system, and Hytera HALO Connect unified PoC and LMR platform.
The PNC560 is supported on Hytera HALO Dispatch, powerful web-based group communication, and location tracking application.

Data Sheet
Owner’s Manual

<img decoding="async" class="ds-hotspot-bg-image-main" src="data:;base64,” alt=”” width=”1310″ height=”900″ data-lazy-src=”https://www.hytera.us/wp-content/uploads/2023/09/Hytera_PNC560_PoC_Smart_Device_Highlights.jpg” />

INFRARED SCANNER

5

TOP MICROPHONE

5

8 MP FRONT CAMERA

5

LED INDICATOR

5

6.3″ TOUCHSCREEN

5

ANDROID OPERATING SYSTEM

5

NOISE CANCELLING AUDIO

5

TWO REAR CAMERAS

5

FLASH/FLASHLIGHT

5

FINGERPRINT ON/OFF

5

MIL-STD & IP68 RATED

5

LONG-LIFE BATTERY

5

SPEAKER

5

USB TYPE C

5

3.5MM AUDIO JACK

5

BUILT-IN GPS

5

SCAN BUTTON

5

PUSH-TO-TALK BUTTON

5

VOLUME CONTROL

5

BUILD-IN WI-FI

5

BUILT-IN BLUETOOTH

5

Functions

NATIONWIDE COVERAGE

National wide-area communication with mobile LTE cellular connectivity

BUILT-IN WI-FI

Built-in 2.4GHz and 5GHz Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range

INSTANT GROUP AND INDIVIDUAL CALLING

Dedicated Push-to-Talk button initiates instant voice or video calls to groups or individuals

POWERFUL DEVICE ENGINE

QualComm 8-core platform provides stable and smooth multi-task operations

VIDEO CALLING

Supports user-initiated video calls and sharing high-resolution images with the Hytera HALO Dispatch application and other PoC devices

TEXT AND AUDIO MESSAGING

Send, receive, and view text messages between dispatcher and other Hytera PoC devices, also record and send audio messages

SECURITY PROTECTION

The PNC560 features biometric fingerprint and facial recognition with fast unlock for secure access, and Android security features protect against unauthorized access and virus/hacker attacks, and provides safebox secure file storage

BUILT-IN BARCODE SCANNER

Built-in infrared scanner head reads 1D and 2D barcodes and QR codes in milliseconds from up to two feet away, and supports barcode scanning and logistics applications. Optional Android Application Package (APK) available for integrating the scanner functionality with other applications

THREE HIGH-DEFINITION CAMERAS

Three separate high resolution cameras, including a screen-facing, wide-angle camera, and two rear-facing cameras with telephoto and wide-angle lenses

LONG-LIFE BATTERY

Powerful 5,040mAh Lithium-Ion Polymer battery delivers up to 15 hours of continuous operation and supports quick charging by desktop charger and USB

DUAL SIM

Dual SIM cards provide flexibility for two network data plans

ULTRA-RUGGED AND DURABLE

Compliant with MIL-STD-810-G for shock and vibration, and IP68 rated to be impervious to dust and fine powders, and can be submerged in 5 feet of water for 30 minutes

ANDROID 12 OPERATING SYSTEM

Supports the latest Android OS business apps for, inventory management, security, and unified operations and communications

ERGONOMIC DESIGN

Ergonomic design with easy-access buttons

6.3 INCH TOUCHSCREEN DISPLAY

Large screen enables multiple simultaneous operations, supports wet hand and glove touch interaction, and provides clear display in bright sunlight

GPS POSITIONING

GPS enables real-time tracking and positioning for the Hytera HALO Dispatch application

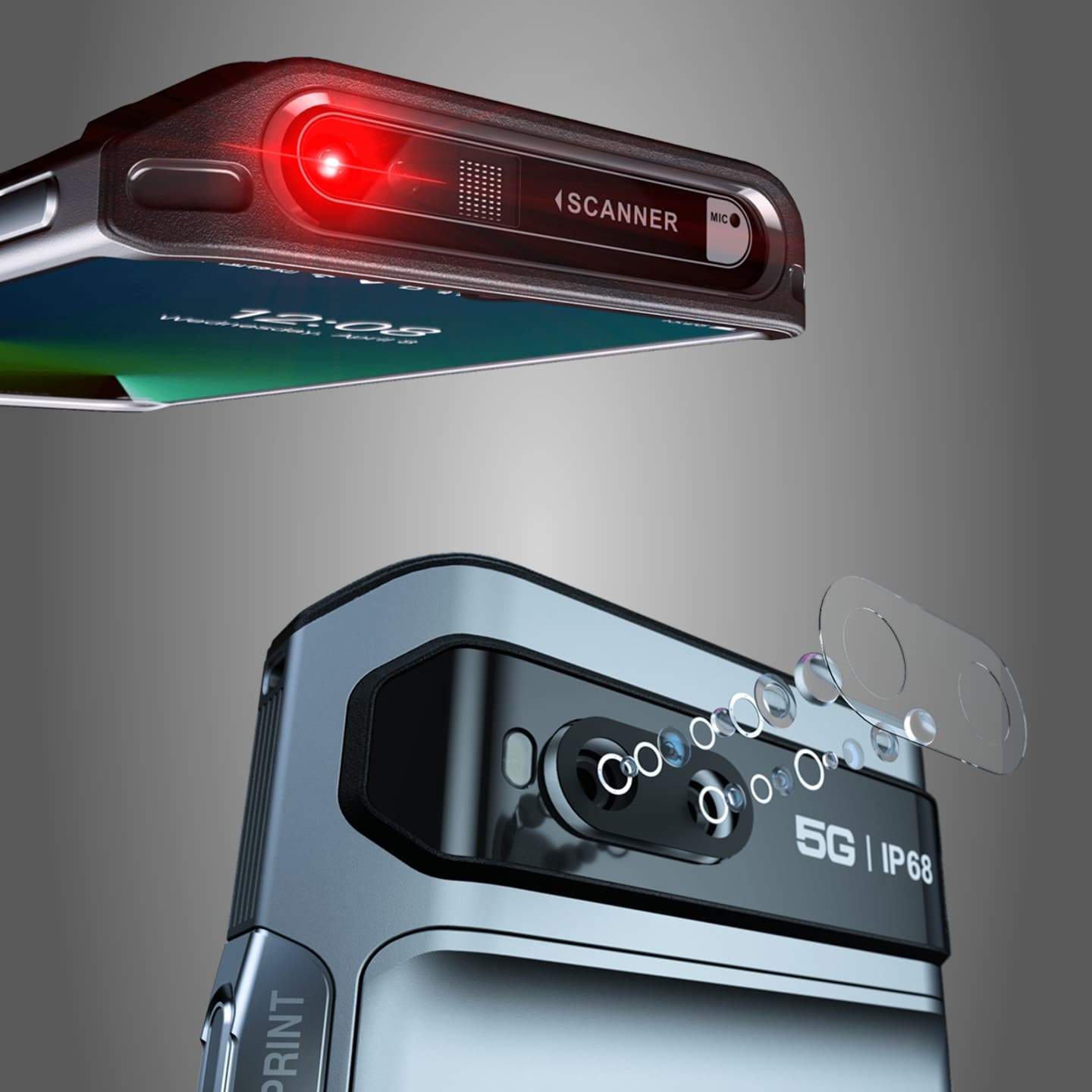

BUILT-IN SCANNER

The PNC560 features an integrated infrared scanner head that reads 1D and 2D barcodes and QR codes in milliseconds from up to two feet away for all-in-one ease of use in warehouse, delivery, inventory, and medical applications. The Android operating system supports a variety of scanner apps.

STATE-OF-THE-ART CAMERAS

The PNC560 features three separate high resolution cameras, including an 8MP screen-facing, wide-angle camera, an 8MP telephoto and 48MP wide-angle rear-facing lenses. It supports low-light photography and HDR (High Dynamic Range) for clear images at night or strong light-contrast environments, and features a lens stabilization algorithm that reduces blurring associated with camera motion.

Standard Accessories for PNC560 PoC Mobile Computer

Battery

BP4901

Li-Ion Polymer Battery (5040mAh)

Li-Ion Polymer Battery (5040mAh)

Charger

PS3007

US-Standard Power Adapter

Power Adapter – Input: 100-240VAC, Output: 5VDC/2A

Programming

PC158

Programming Cable – USB Type C

Programming Cable – USB Type C

Carrying

POA200

Tempered Glass Screen Protector

Screen Protector

Optional Accessories for PNC560 PoC Mobile Computer

Audio

EHS24

C-Style Earpiece with Push-to-Talk Mic

C-Style Earpiece with Push-to-Talk Mic

POA121

Bluetooth Ring PTT

The wireless PTT ring is designed for finger wearing and allows you to trigger PTT functions without holding a portable radio in your hands.

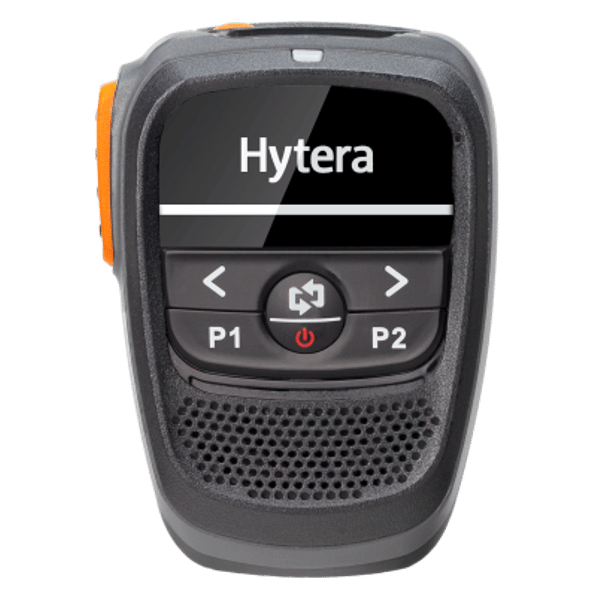

SM27W2

Bluetooth Remote Speaker Mic with charging cable

Bluetooth wireless remote speaker microphone finished (IP67)

EAS07

Earpiece with in-line PTT & Transparent Acoustic Tube

Earpiece with in-line PTT & Transparent Acoustic Tube

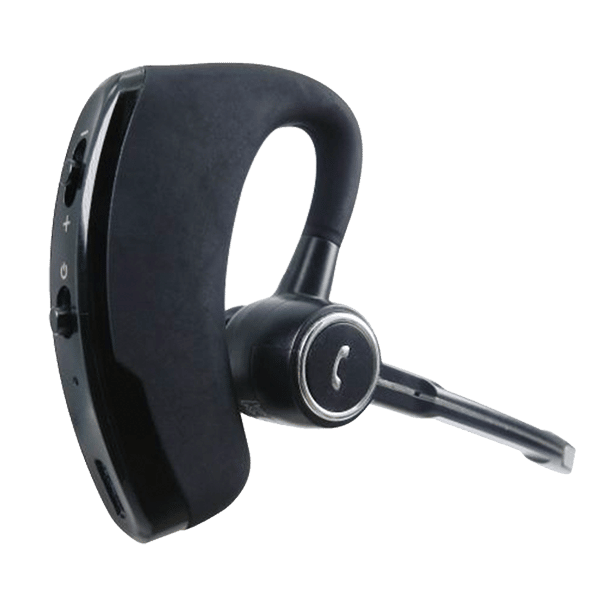

EHW08

Bluetooth Earpiece with PTT button and microphone

Bluetooth Earpiece with PTT button and microphone

Battery

BP4901

Li-Ion Polymer Battery (5040mAh)

Li-Ion Polymer Battery (5040mAh)

Carrying

BC39

Belt Clip

Belt Clip

POA200

Tempered Glass Screen Protector

Screen Protector

POA207

Protective Case with Hand Strap

Protective Case with Hand Strap for PNC560

Installation

BRK37

Protective Case with Mounting Bracket

Protective Case with Mounting Bracket PNC560

Charger

CH20L19

Desktop Charger

PNC560 Desktop Charger

PS3007

US-Standard Power Adapter

Power Adapter – Input: 100-240VAC, Output: 5VDC/2A

Programming

PC158

Programming Cable – USB Type C

Programming Cable – USB Type C

Protection Plan

Halo Care

Halo Care

The HALO Care Protection Program covers repairs for one accidental damage instance within two years of purchase. Must be purchased at the time of initial purchase of the PoC device.

Systems that work with PNC560 PoC Mobile Computer

Systems

Hytera HALO Nationwide

Subscription-based PoC Radios as a Service

Hytera HALO OnSite and OnSite Plus

Own Your Own Push-to-Talk over Cellular System

Hytera HALO Connect

Integrates DMR Radio Networks with PoC and Third Party Radio Systems

HALO PoC Dispatch

Web-based PoC Dispatching Application

HALO Bridge

PoC to DMR/Analog Radio Gateway

Technical Specifications

Standards and Frequencies

5G	N1/N2/N3/N5/N20/N28/N41/N66/N71/N78
LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28
LTE-TDD	B38/B39/B40/B41/B2/B43/B48
WCDMA	B2/B4/B5/B8
GSM	850/900/1800/1900
Wi-Fi	2.4GHz/5GHz 802.11b/g/n/ac
Bluetooth	BT 5.0
Positioning System	GPS/Galileo/BDS/A-GPS
Audio Formats	MP3, eAAC, G.711, Windows Media Audio 9/10/Pro, AMR-NB, AMR-WB
Image Formats	JPG, GIF, BMP, PNG, WebP
Video Formats	1080p@30fps, MPEG-4, 3GP, P0, H.264, VP9, BP/MP/HP/ASP, DivX 4x/5x/6x

Transceiver

Audio Power Output	3W rated
Microphone	Microphone with AI-based noise suppression

Environmental

Operating Temperature	-4°F to +140°F (-20°C to +60°C)
Storage Temperature	-22°F to +158°F (-30°C to +70°C)
ESD	IEC 61000-4-2 (Level 4) 8kV Contact, 12kV Air
Dust and Water Ingress	IP68 Standard, Full submersion at 5 feet for 30 minutes
Humidity	Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration	Per MIL-STD-810 C/D/E/F/G Standard Drop Proof to 5 Feet
3GPP	MCX Release 15, Standard: 400,000 presses

Certications

Environmental	RoHS/REACH
Certication	FCC, CE, IC, GMS

General

Battery	5,040mAh (Li-Ion Polymer)
Battery Life	Up to 15 hours continuous use
Weight	9.5oz (270g)
Dimensions (H x W x D)	6 9/16” x 3 1/32” x 1/2” (167 x 77 x 13mm)
Operating System	Android 12
Memory	4GB RAM + 32GB ROM
Card Slots	2X Nano SIM, or 1X Nano SIM and 1X MicroSD 128Gb
Display	6.3” Gorilla Glass, FHD+, 2340×1080, Supports Multi-Touch, Wet, and Glove Touch
Camera	8MP Front Facing, 8MP Rear Facing Telephoto, and 48MP (via software algorithm) Wide Angle Rear Facing
Flash / Flashlight	Supported
Ports	USB Type C Charger Interface, 3.5mm Audio Interface
Physical Interface Buttons	1x Push-to-Talk, 2x Volume (+/-), 1x Programmable Button for Scanning or other functions, 1x Power with Fingerprint Recognition
Sensors	Fingerprint, Acceleration, Gravity, Gyroscope, Geomagnetic, Infrared, Light

Accessories

Standard Accessories:

BP4901, PC158, POA200, PS3007

Optional Accessories:

BC39, BP4901, BRK37, CH20L19, EAS07, EHS24, EHW08, Halo Care, PC158, POA121, POA200, POA207, PS3007, SM27W2

Technical Specifications

Technical Specifications

Standards and Frequencies

5G	N1/N2/N3/N5/N20/N28/N41/N66/N71/N78
LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28
LTE-TDD	B38/B39/B40/B41/B2/B43/B48
WCDMA	B2/B4/B5/B8
GSM	850/900/1800/1900
Wi-Fi	2.4GHz/5GHz 802.11b/g/n/ac
Bluetooth	BT 5.0
Positioning System	GPS/Galileo/BDS/A-GPS
Audio Formats	MP3, eAAC, G.711, Windows Media Audio 9/10/Pro, AMR-NB, AMR-WB
Image Formats	JPG, GIF, BMP, PNG, WebP
Video Formats	1080p@30fps, MPEG-4, 3GP, P0, H.264, VP9, BP/MP/HP/ASP, DivX 4x/5x/6x

Transceiver

Audio Power Output	3W rated
Microphone	Microphone with AI-based noise suppression

Environmental

Operating Temperature	-4°F to +140°F (-20°C to +60°C)
Storage Temperature	-22°F to +158°F (-30°C to +70°C)
ESD	IEC 61000-4-2 (Level 4) 8kV Contact, 12kV Air
Dust and Water Ingress	IP68 Standard, Full submersion at 5 feet for 30 minutes
Humidity	Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration	Per MIL-STD-810 C/D/E/F/G Standard Drop Proof to 5 Feet
3GPP	MCX Release 15, Standard: 400,000 presses

Certications

Environmental	RoHS/REACH
Certication	FCC, CE, IC, GMS

General

Battery	5,040mAh (Li-Ion Polymer)
Battery Life	Up to 15 hours continuous use
Weight	9.5oz (270g)
Dimensions (H x W x D)	6 9/16” x 3 1/32” x 1/2” (167 x 77 x 13mm)
Operating System	Android 12
Memory	4GB RAM + 32GB ROM
Card Slots	2X Nano SIM, or 1X Nano SIM and 1X MicroSD 128Gb
Display	6.3” Gorilla Glass, FHD+, 2340×1080, Supports Multi-Touch, Wet, and Glove Touch
Camera	8MP Front Facing, 8MP Rear Facing Telephoto, and 48MP (via software algorithm) Wide Angle Rear Facing
Flash / Flashlight	Supported
Ports	USB Type C Charger Interface, 3.5mm Audio Interface
Physical Interface Buttons	1x Push-to-Talk, 2x Volume (+/-), 1x Programmable Button for Scanning or other functions, 1x Power with Fingerprint Recognition
Sensors	Fingerprint, Acceleration, Gravity, Gyroscope, Geomagnetic, Infrared, Light
